CHIEF CONCERN & PROBLEM LIST

The case begins with a clear clinical baseline.

Treatment objective: align. Records include intraoral photographs, facial photographs, digital models, a lateral cephalogram and a panoramic radiograph.

Profile type

Straight profile

Skeletal findings

Skeletal Class I

Low-angle pattern

Dental findings

Left Angle Class II
Right Angle Class II
Maxillary: 2.25 mm spacing
Mandibular: 0.68 mm, normal
Mandibular arch 4–4 is excessively wide
Proclined maxillary central incisors

Oral health

Insufficient eruption space: 13, 15, 23
Potential impaction: 18, 28, 38, 48

IOTN and PAR indices indicate a high treatment need and severe initial malocclusion. These data provide an objective baseline for treatment selection and outcome evaluation.

SKELETAL, GROWTH & AIRWAY ANALYSIS

Measurements are read together—not as isolated charts.

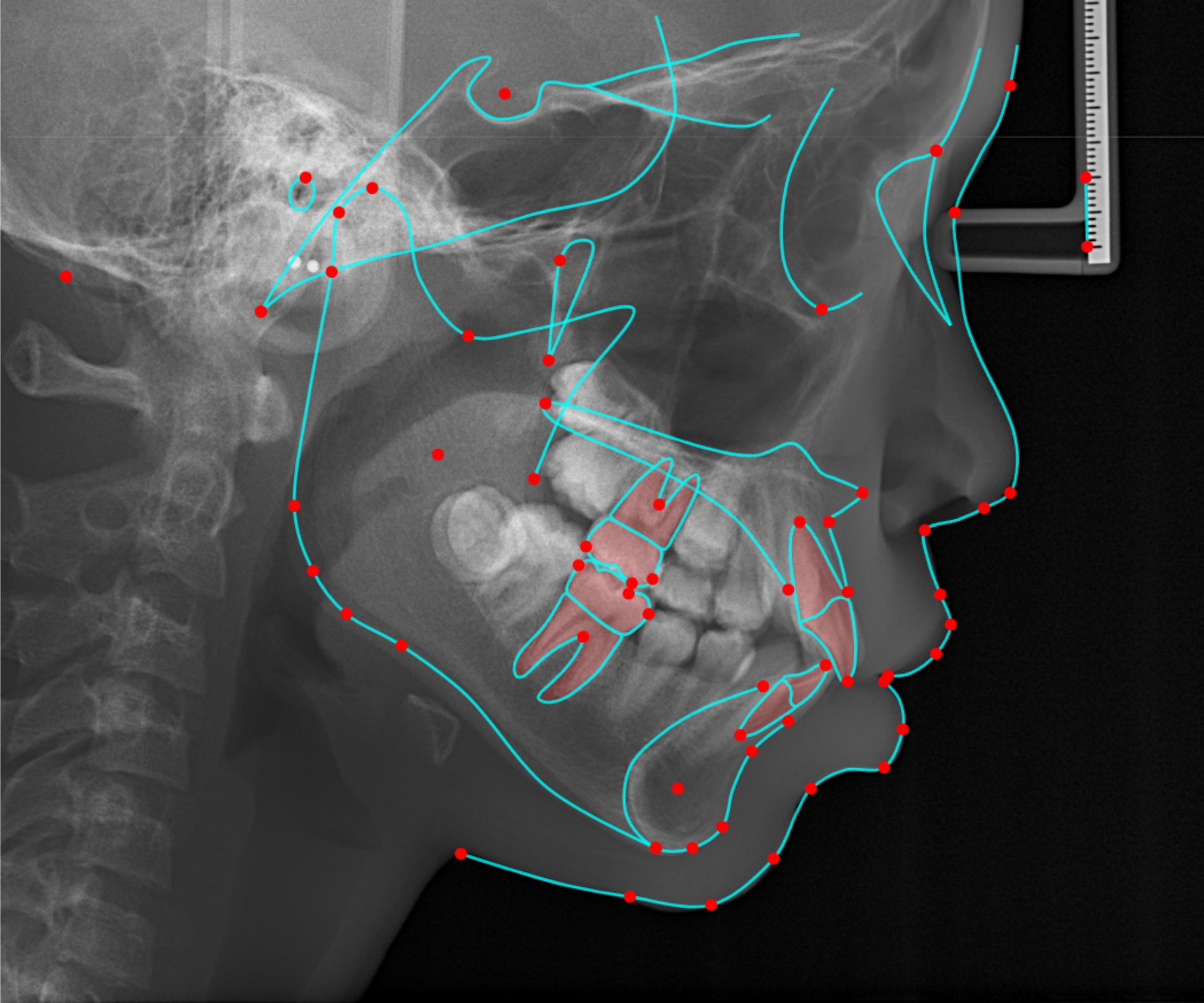

Cephalometric conclusion

Skeletal Class I, low angle, proclined lower incisors.

MeasurePatientReference

L1–FH53.63°54.9 ± 6.1°

FH–MP22.77°31.3 ± 5.0°

L1–MP103.60°93.9 ± 6.2°

SNA81.40°82.8 ± 4.0°

SNB80.43°80.1 ± 3.9°

ANB0.96°2.7 ± 2.0°

AO–BO−3.16 mm−1.0 ± 2.8 mm

OP–FH9.48°10.0 ± 2.0°

Z-Angle65.87°75.0 ± 5.0°

Upper thickness12.07°14.1 ± 1.2°

Pog′–NB6.57 mm11.8 ± 1.2 mm

Ar–Go′43.30 mm44.0 ± 5.0 mm

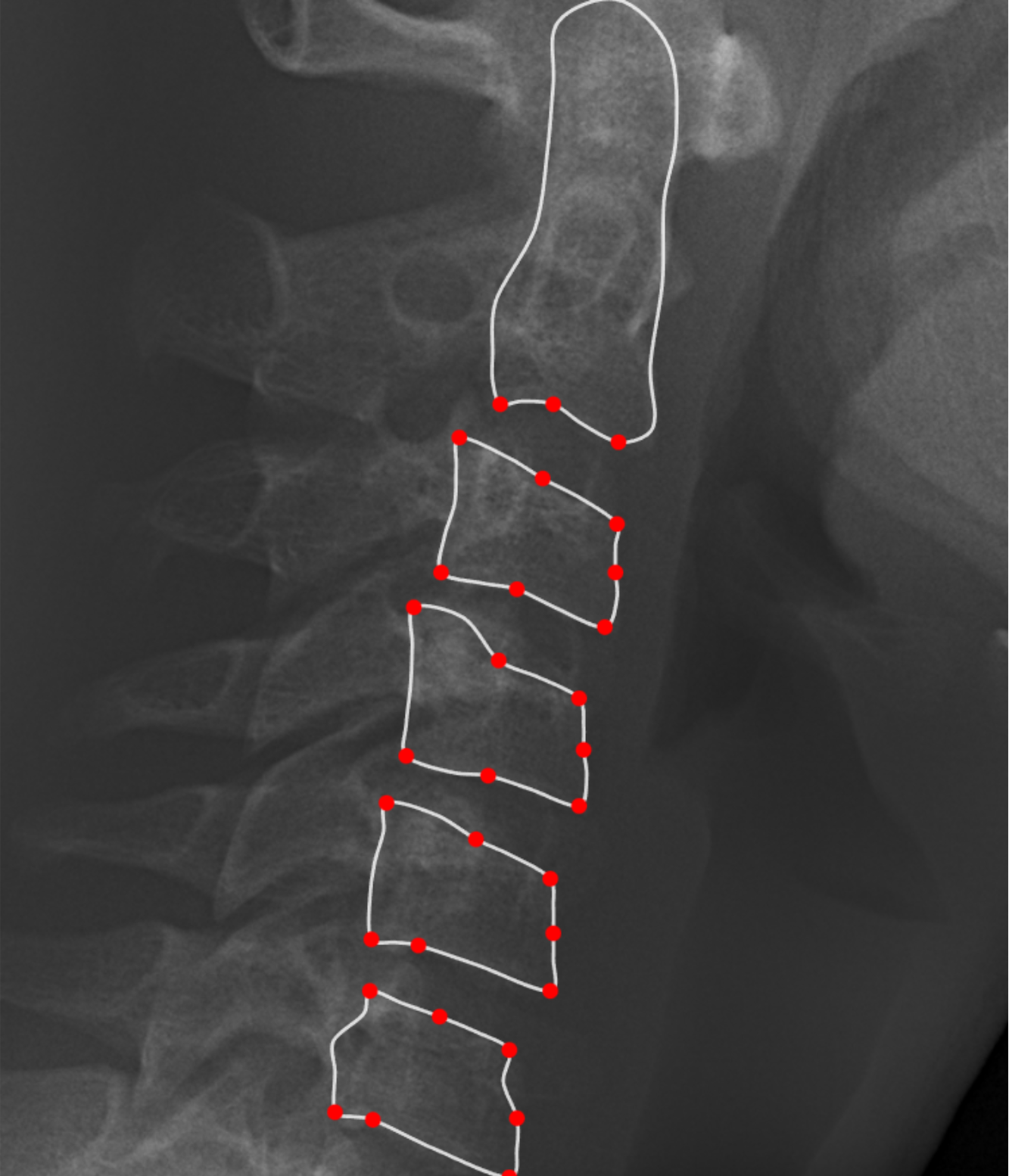

CERVICAL VERTEBRAL ANALYSIS

Transition stage, less than one year from peak mandibular growth.

C2 concavity angle (@2): 17.77°
C3 anterior height (AH3): 7.88
C3 posterior height (PH3): 10.38
C4 height (H4): 9.11
C4 width (W4): 13.72

QcVM: IICVMS = 1.85 = −4.13 + 3.57 × H4/W4 + 4.07 × AH3/PH3 + 0.03 × @2

I: 1.74II: 2.62III: 3.52IV

C2: lower-border concavity. C3: lower-border concavity with trapezoidal or horizontal rectangular form. C4: flat lower border with trapezoidal form.

QUALITATIVE ANALYSIS

Cervical vertebral maturation stages

CS1 cervical vertebral stage — **CS1**Initiation

CS2 cervical vertebral stage — **CS2**Acceleration

CS3 cervical vertebral stage — **CS3**Transition · Patient stage

CS4 cervical vertebral stage — **CS4**Deceleration

CS5 cervical vertebral stage — **CS5**Maturation

CS6 cervical vertebral stage — **CS6**Completion

AIRWAY ANALYSIS

Airway dimensions reviewed against reference ranges.

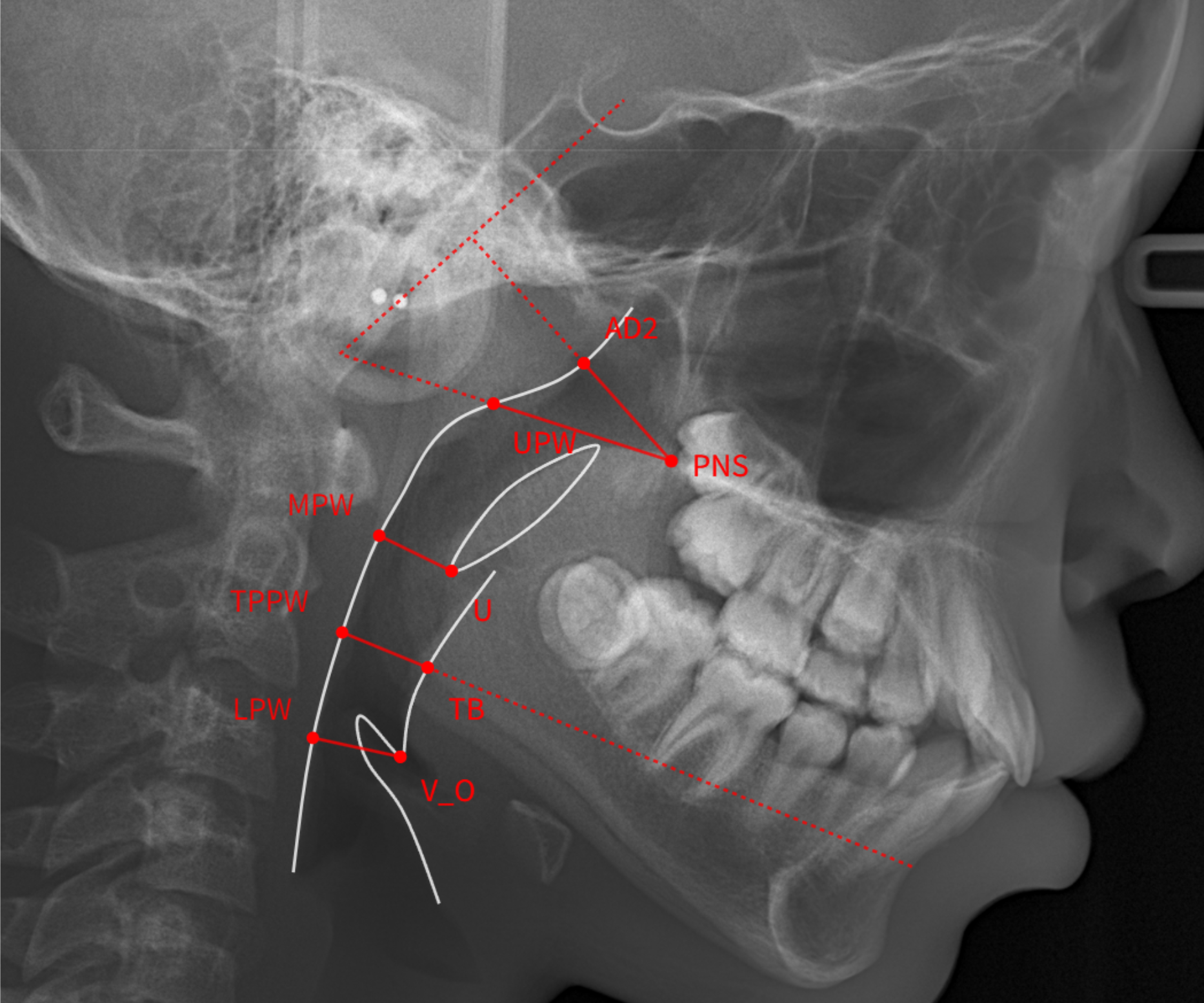

PNS–UPW23.65 mm27.4 ± 3.9 mm

PNS–AD217.22 mm25.4 ± 3.3 mm

U–MPW9.81 mm11.2 ± 1.7 mm

TB–TPPW10.58 mm12.2 ± 2.4 mm

V–LPW10.38 mm19.6 ± 2.6 mm

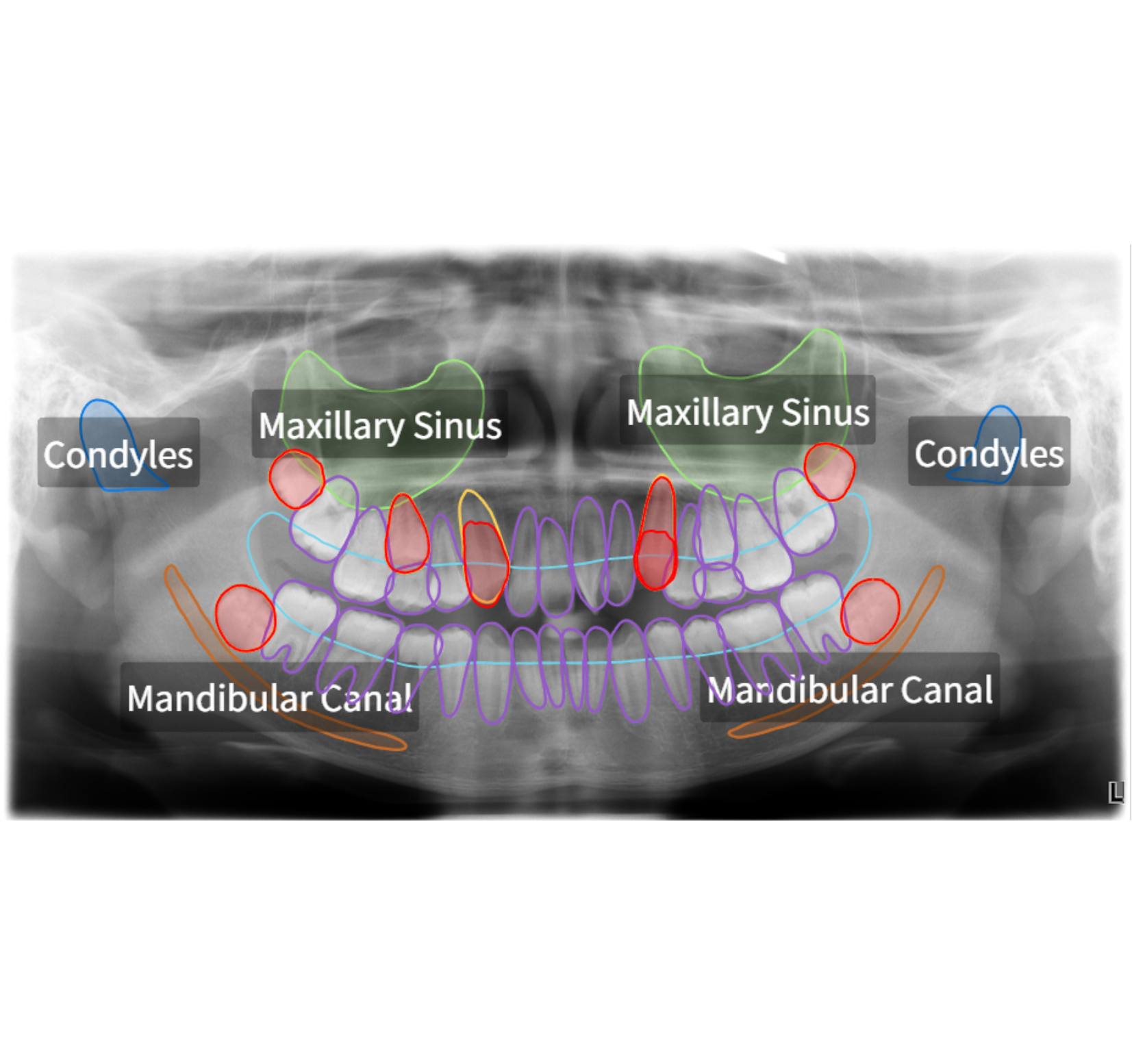

PANORAMIC & INTRAORAL RECORDS

Clinical findings remain attached to their evidence.

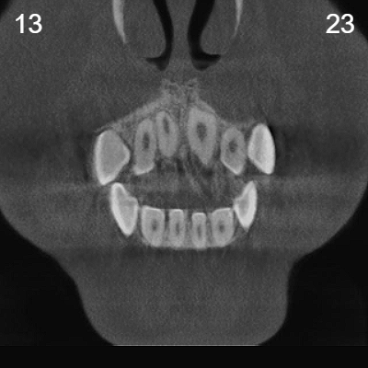

Insufficient eruption space

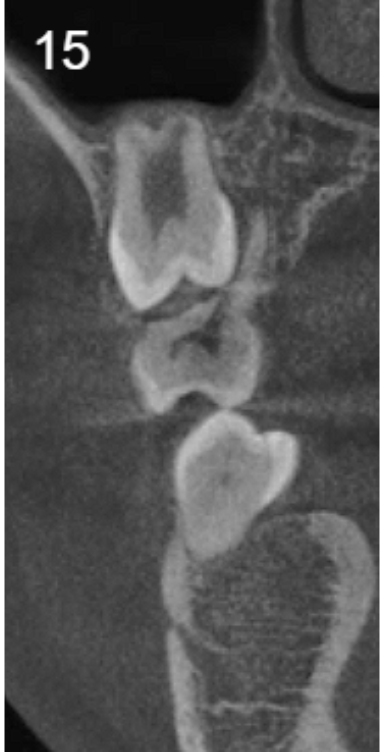

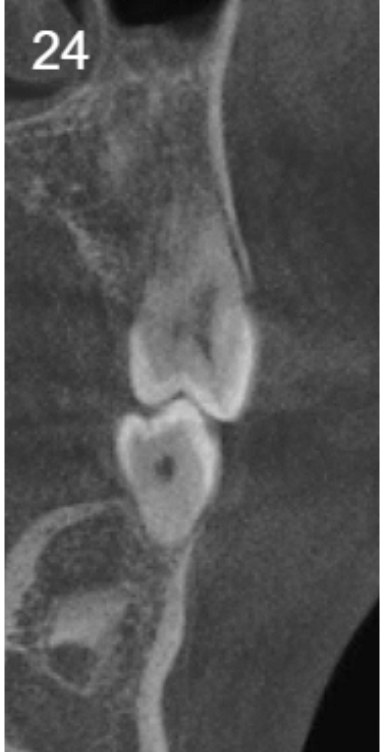

Teeth 13, 15 and 23 have limited space in their respective regions, restricting normal eruption.

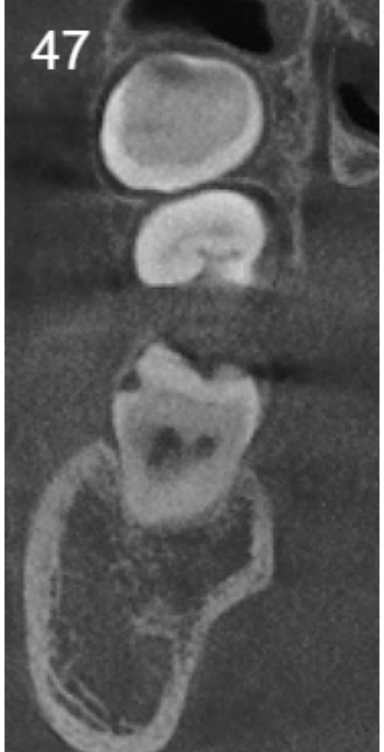

Potential impaction

Based on tooth position, eruption path and surrounding structures, teeth 18, 28, 38 and 48 present potential impaction risk.

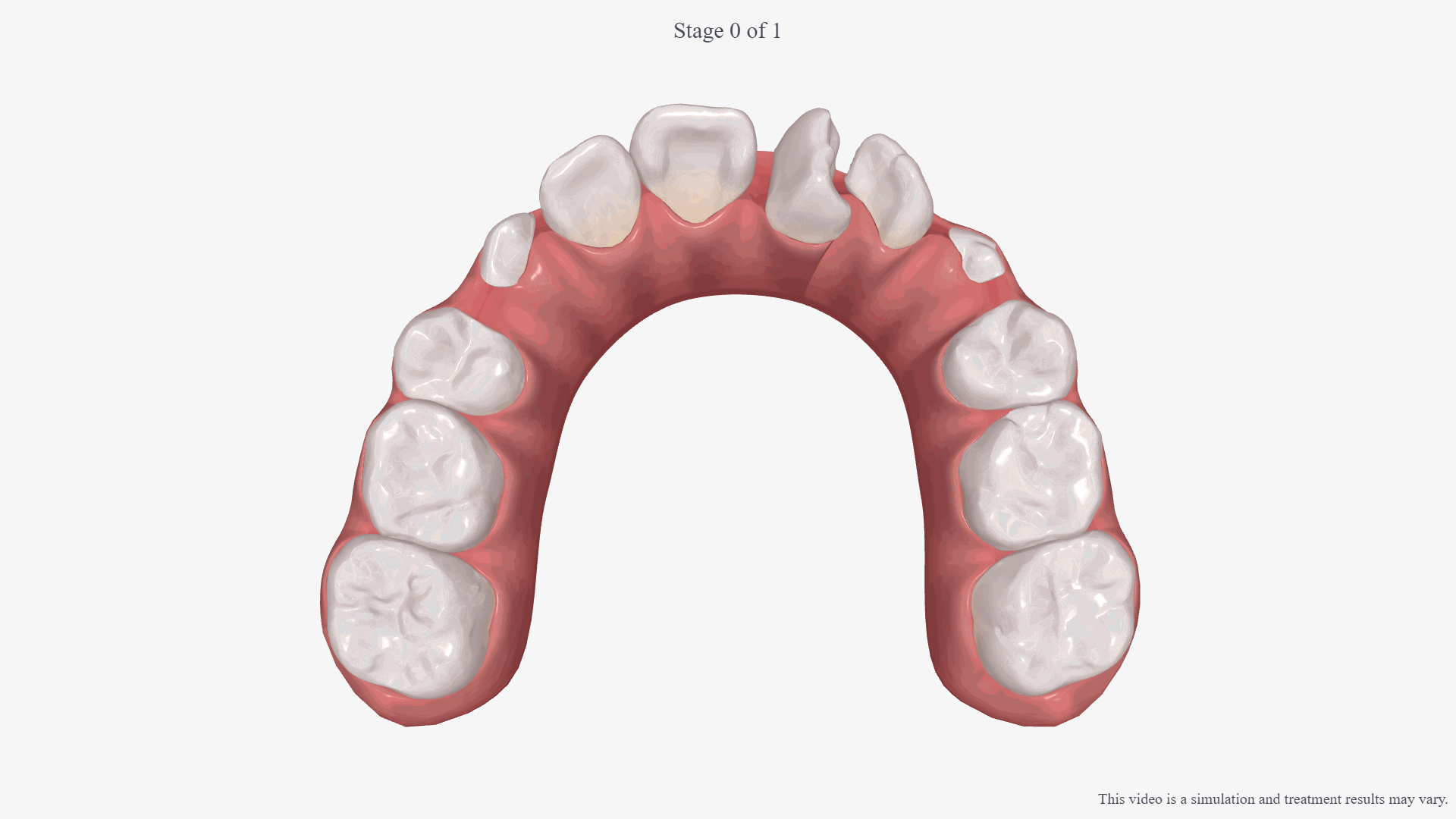

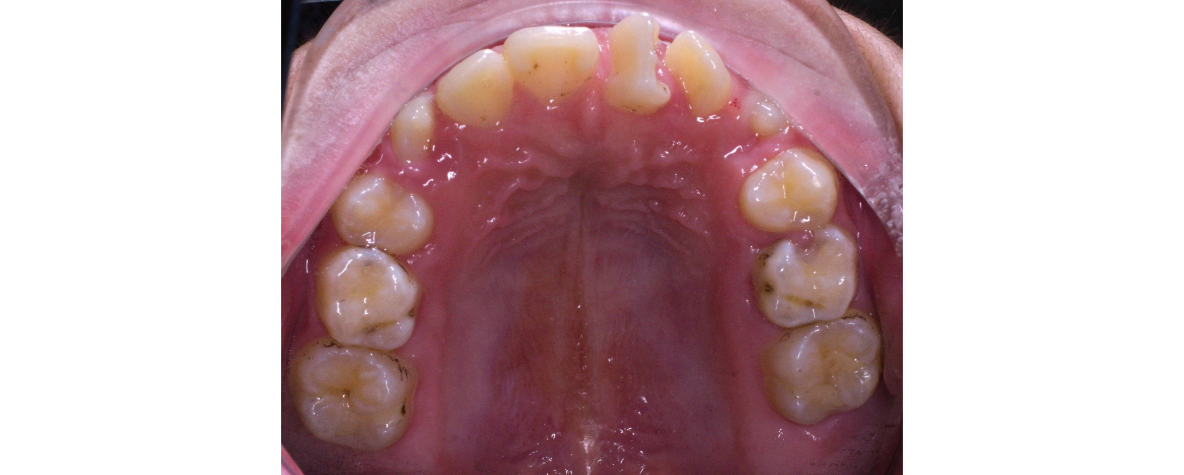

Upper arch intraoral photograph — Upper arch

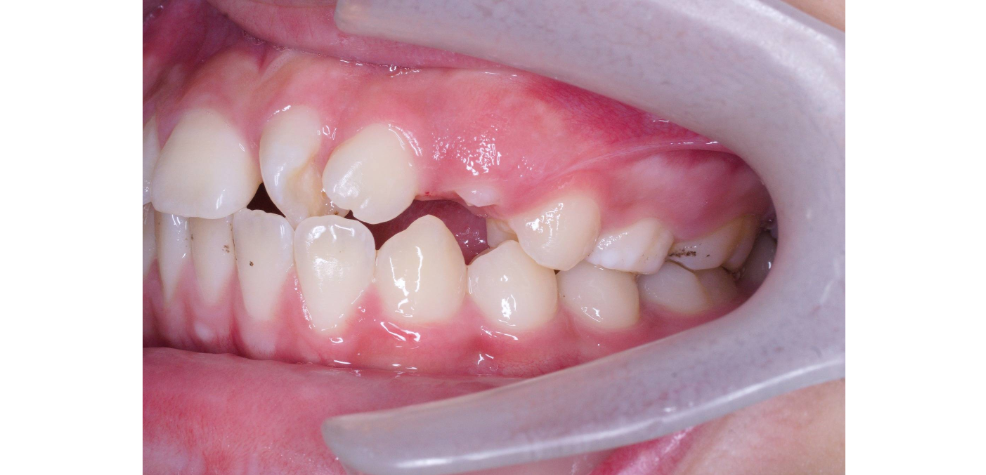

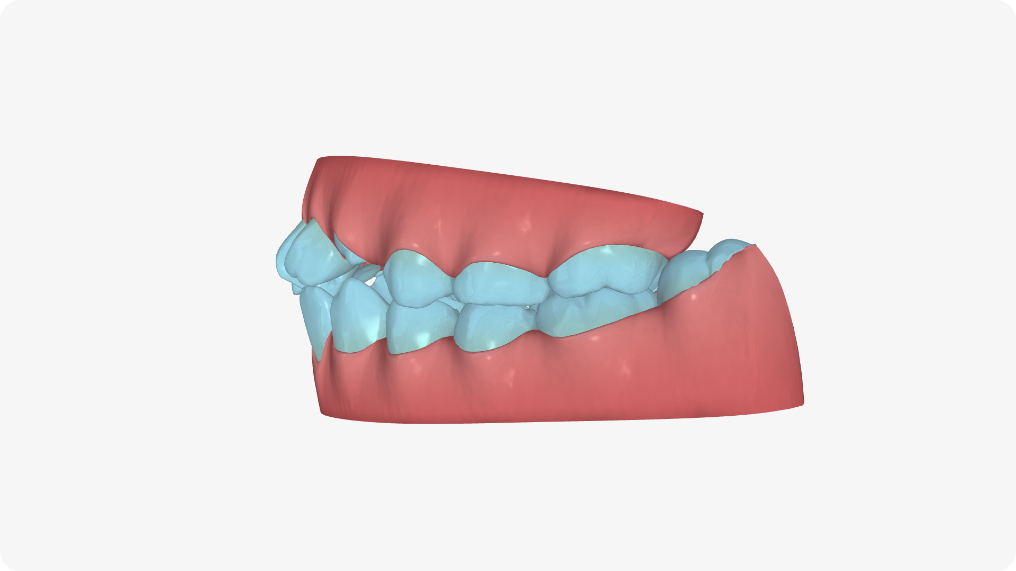

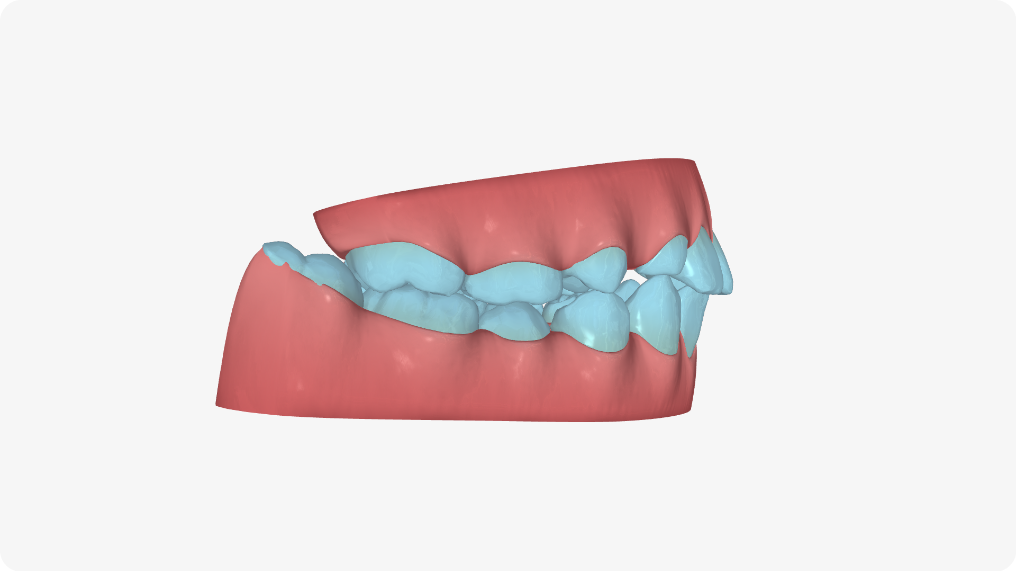

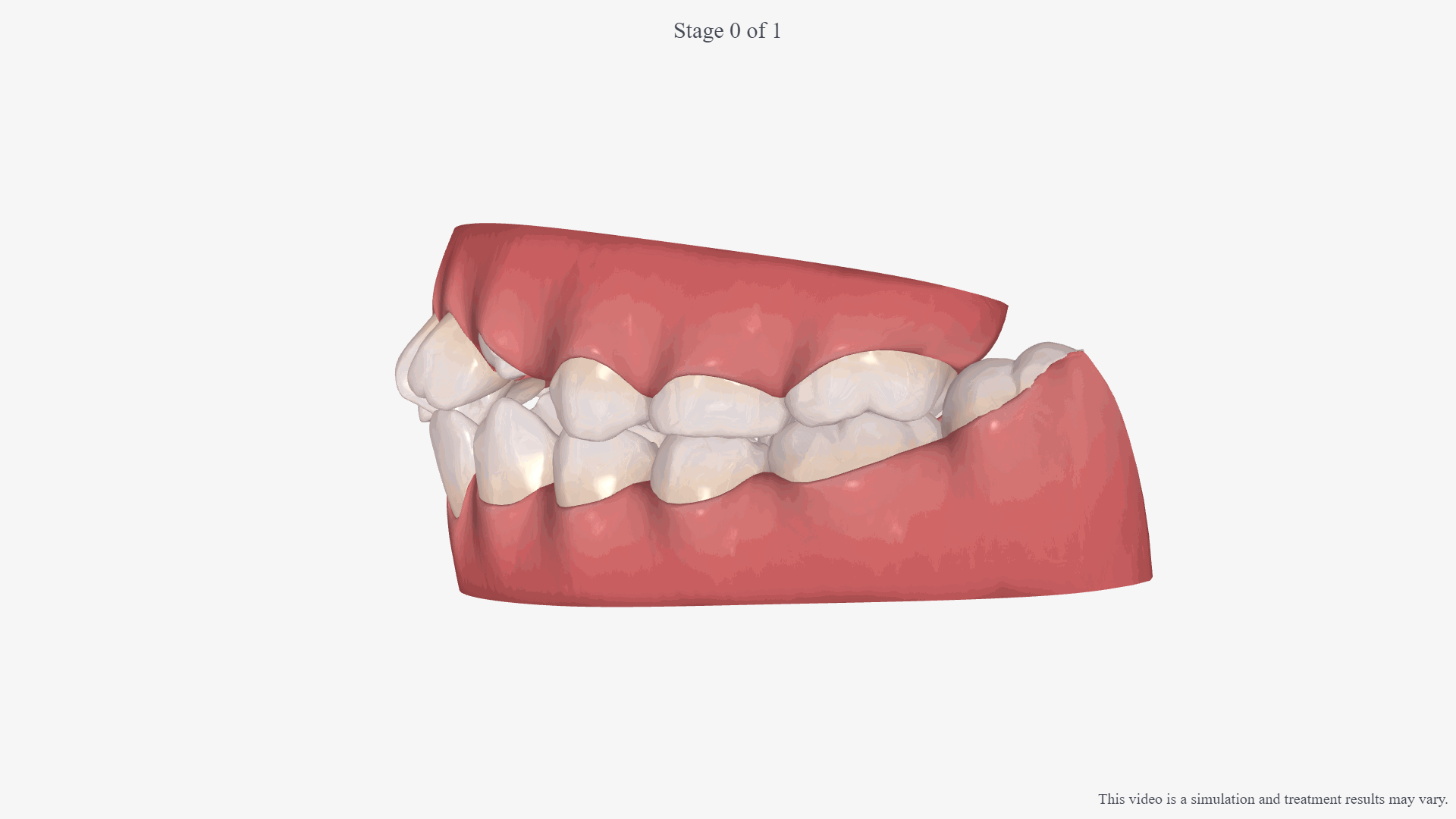

Left occlusion intraoral photograph — Left occlusion

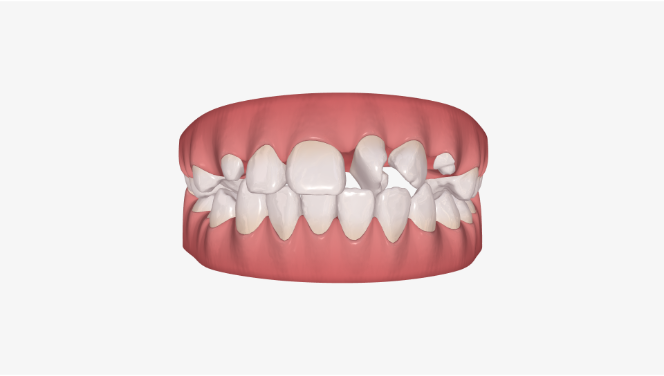

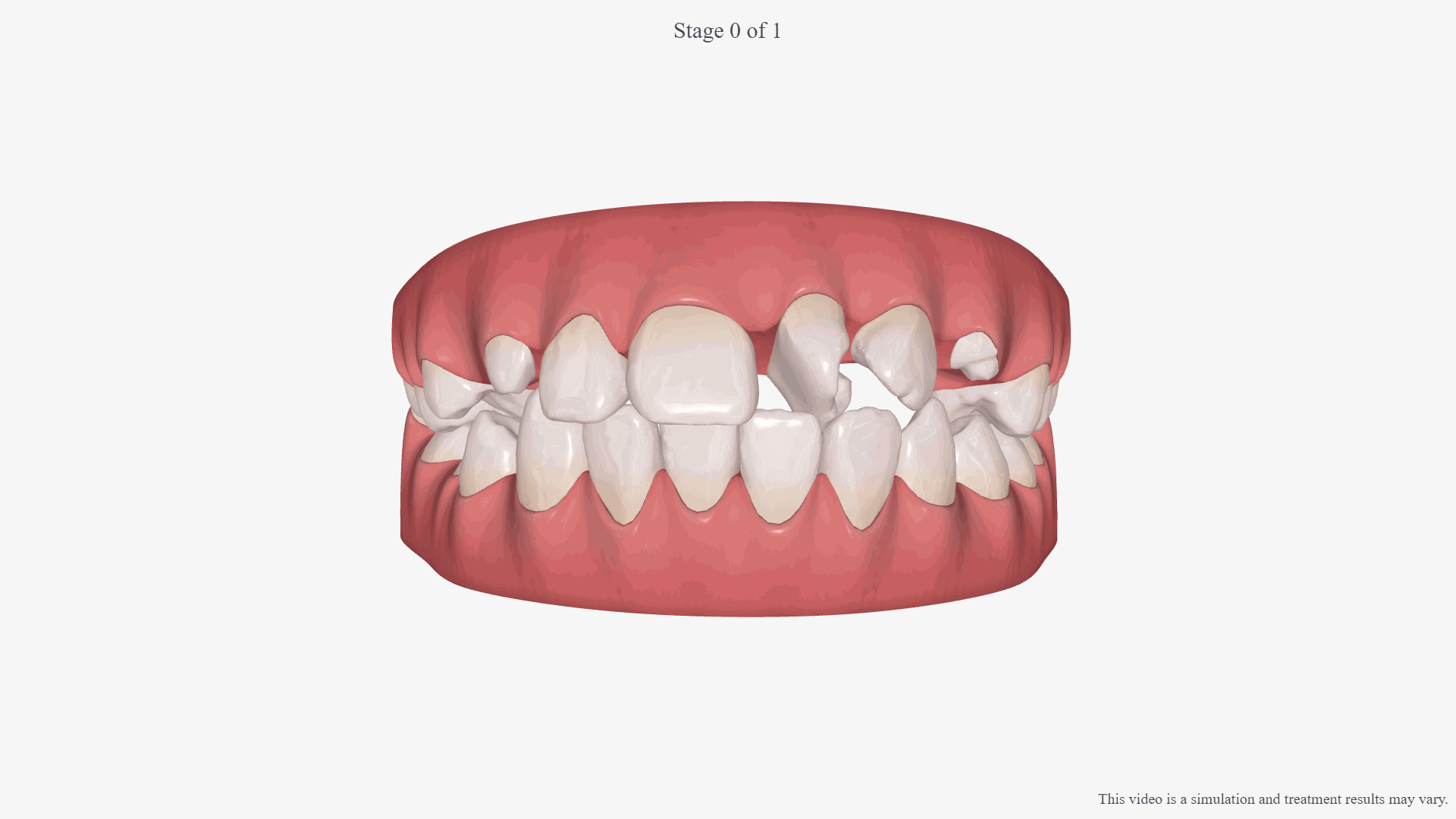

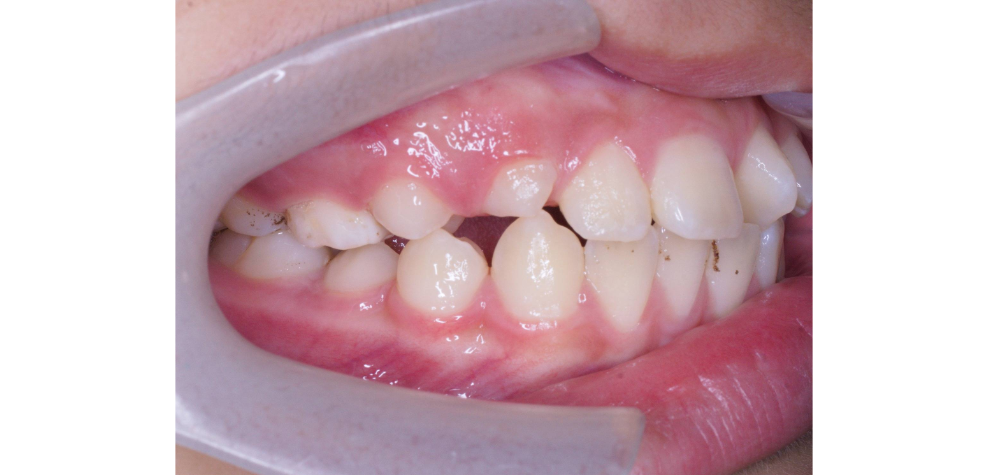

Frontal occlusion intraoral photograph — Frontal occlusion

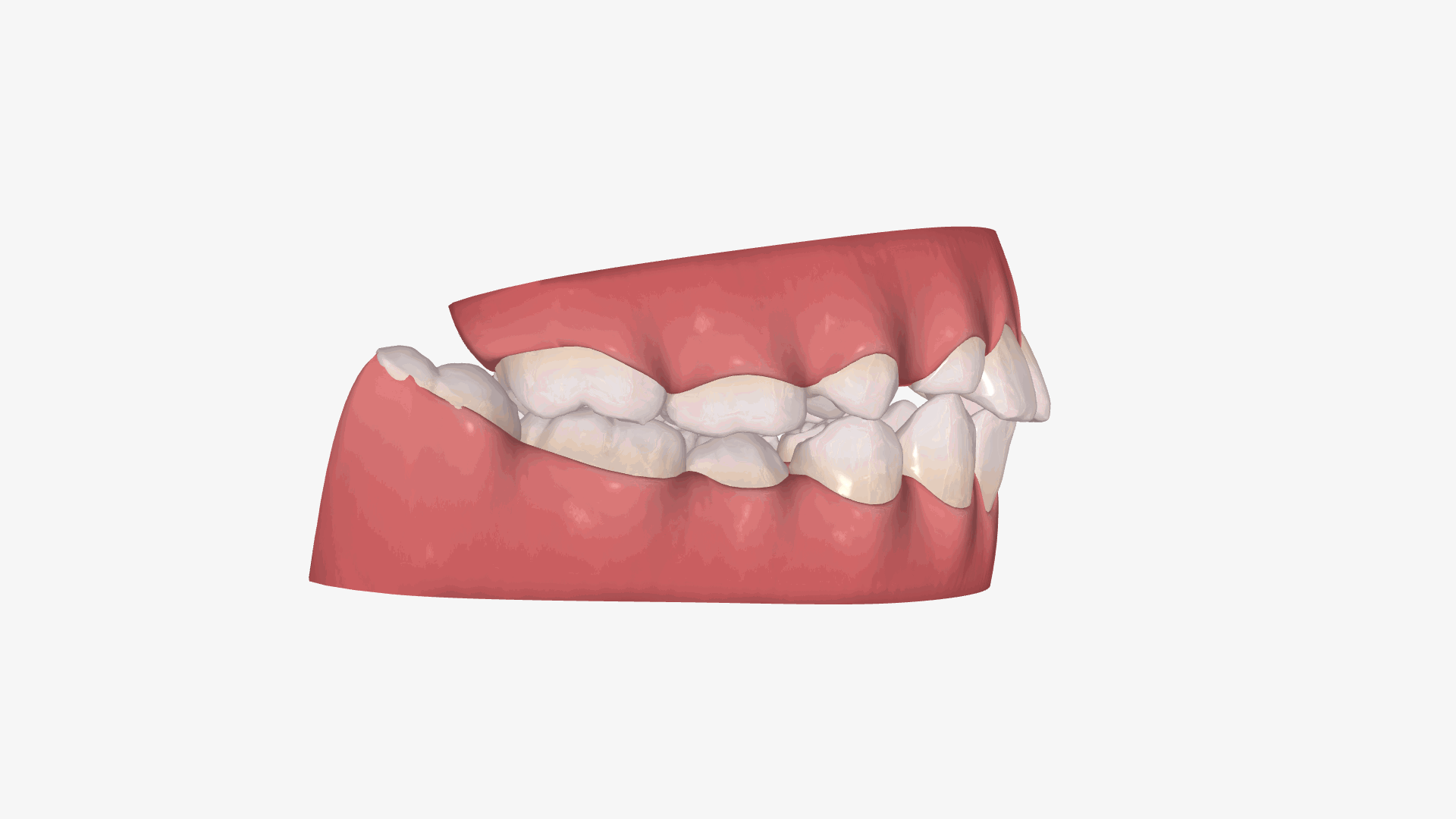

Right occlusion intraoral photograph — Right occlusion

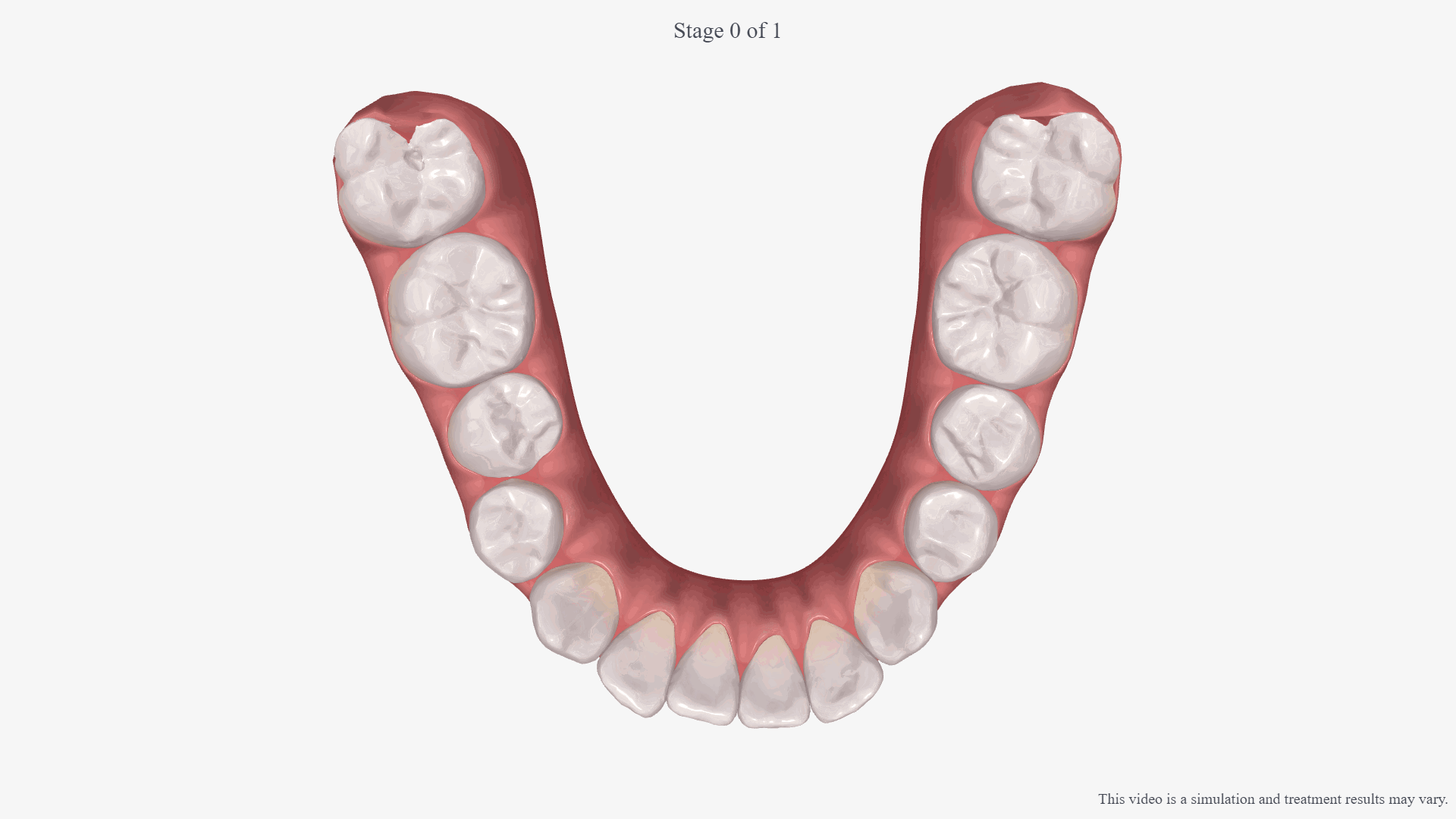

Lower arch intraoral photograph — Lower arch

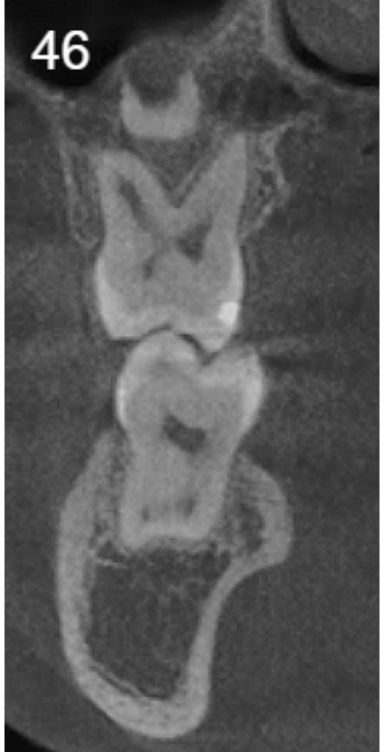

Oral-health findingCaries: tooth 46

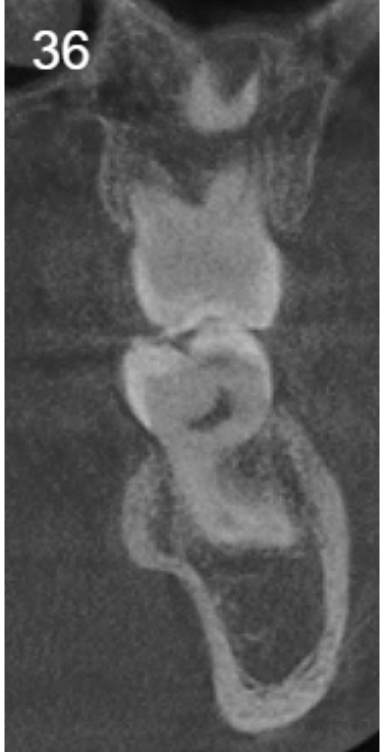

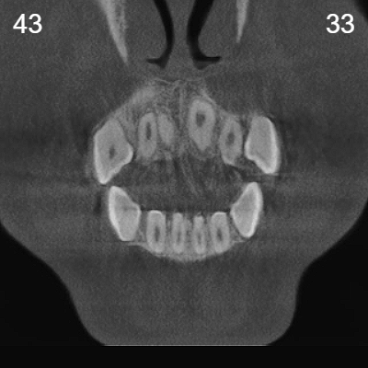

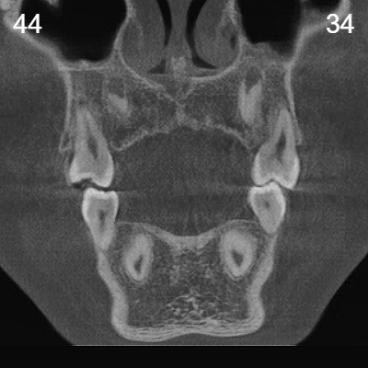

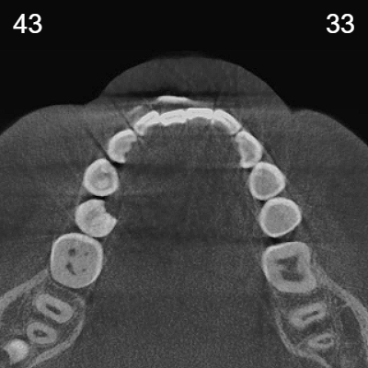

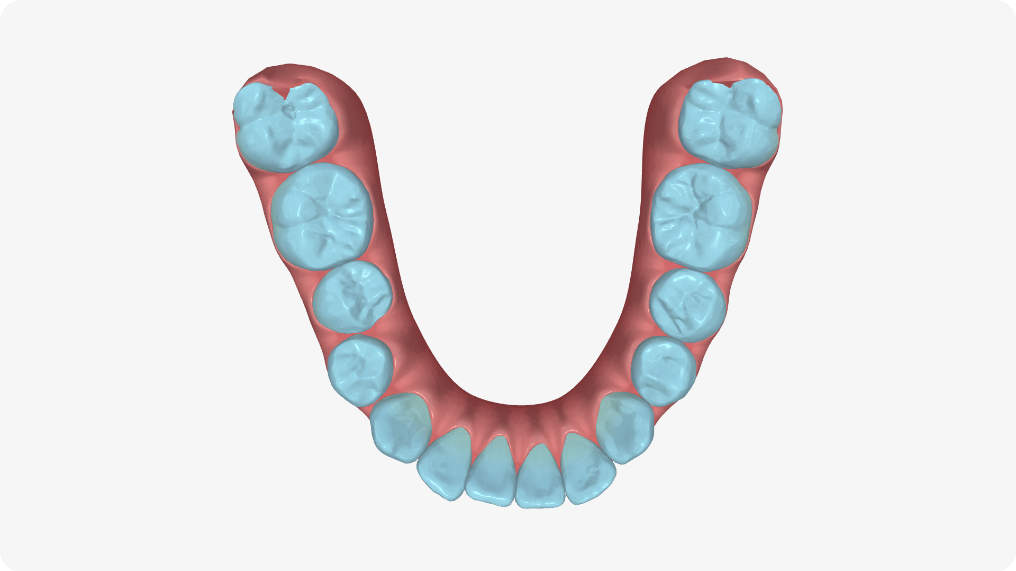

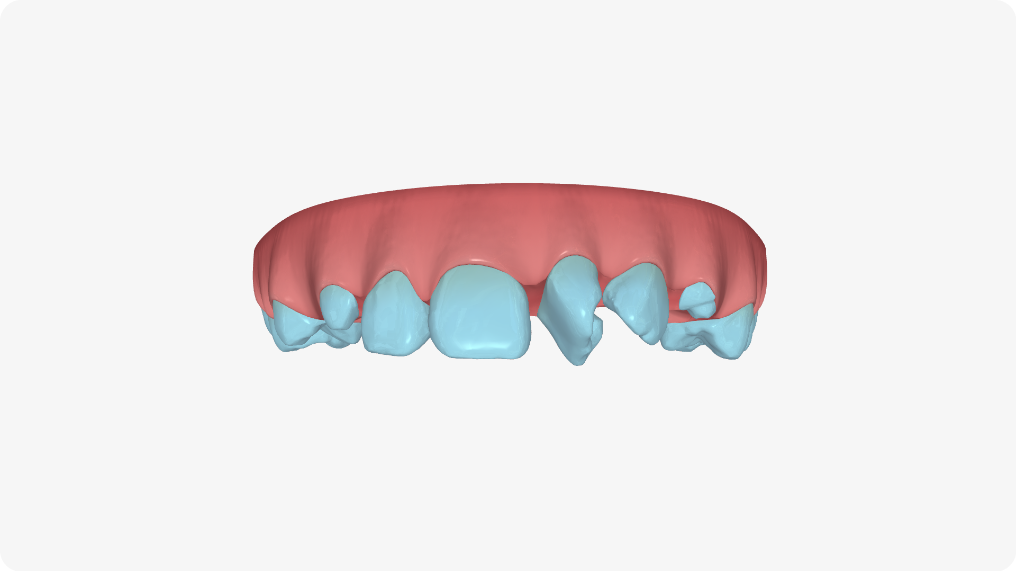

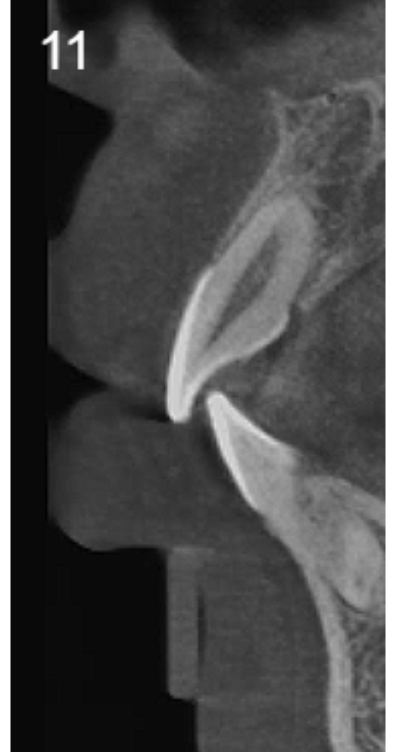

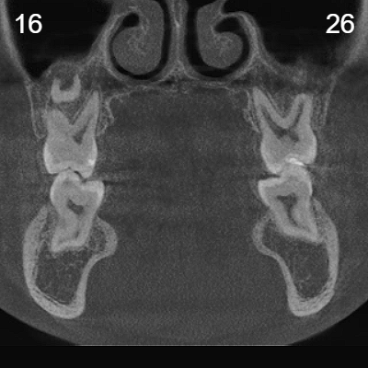

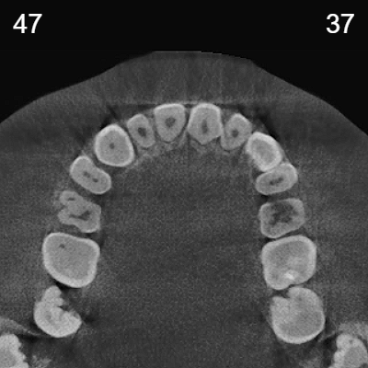

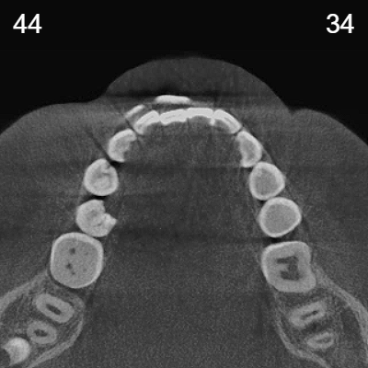

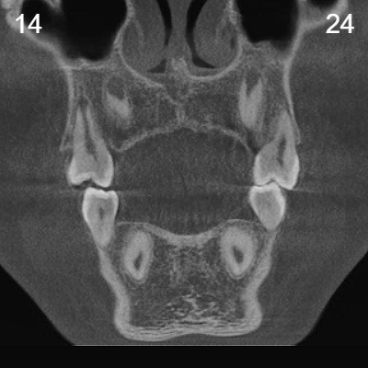

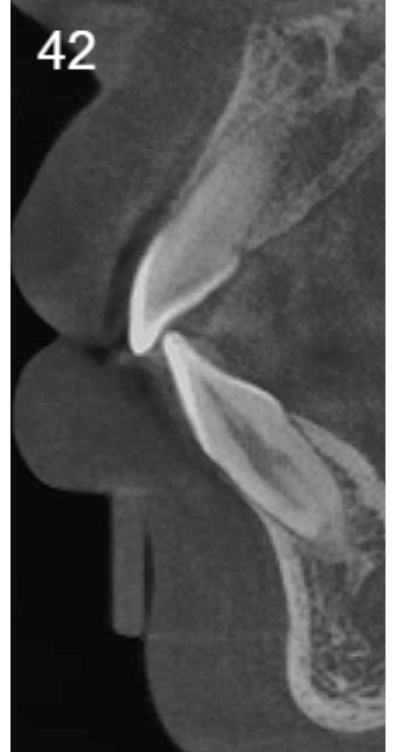

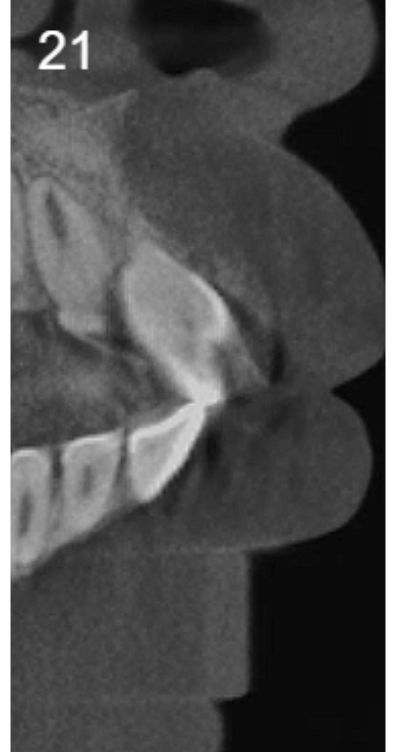

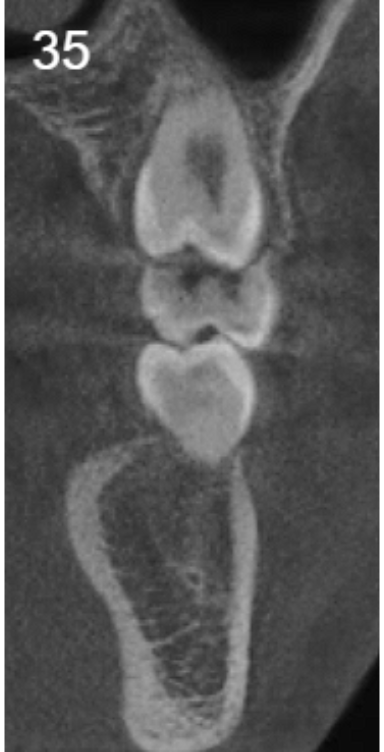

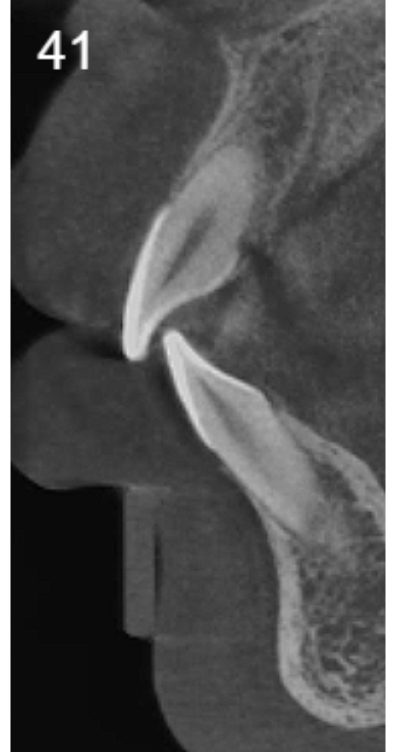

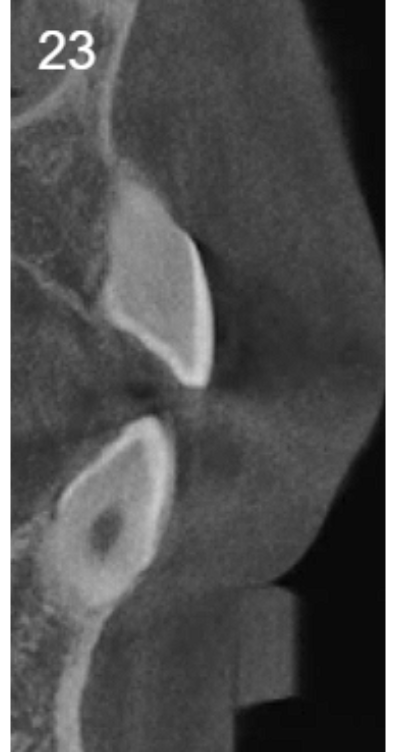

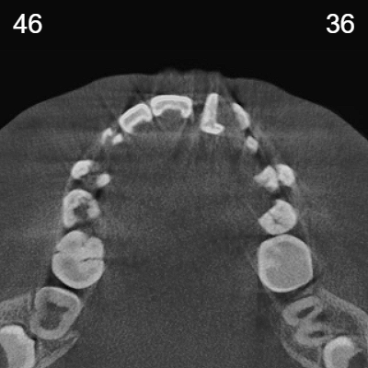

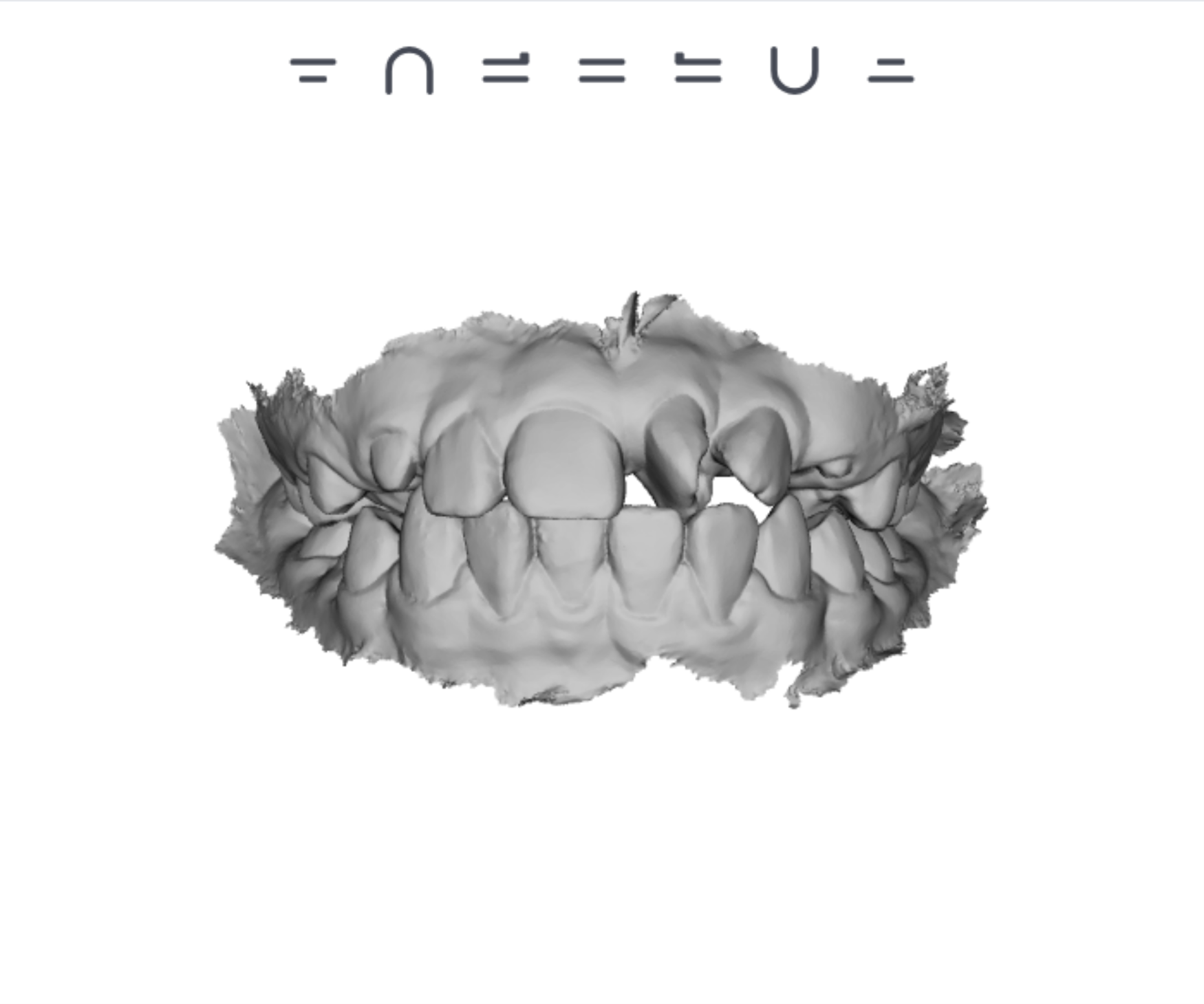

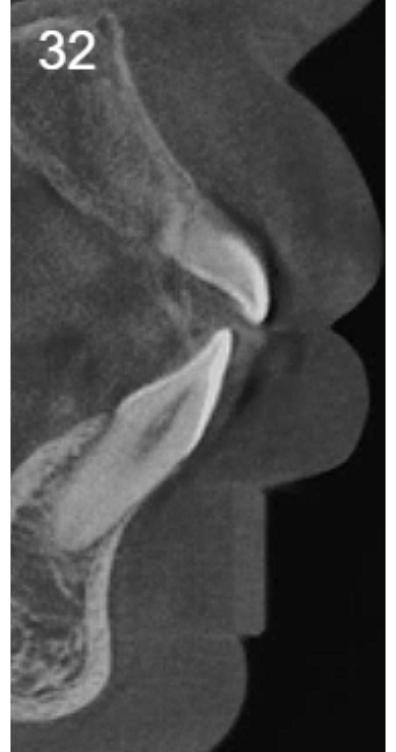

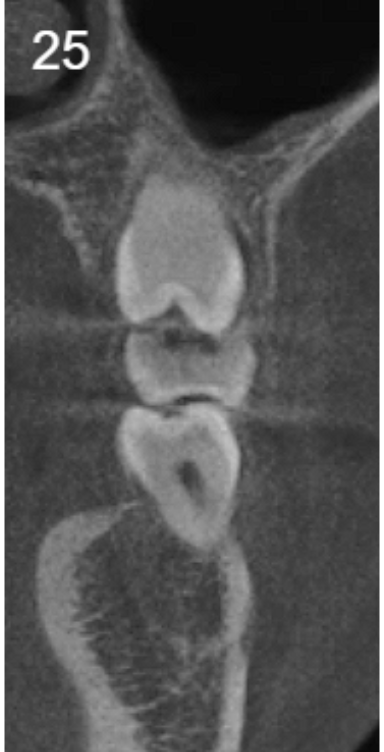

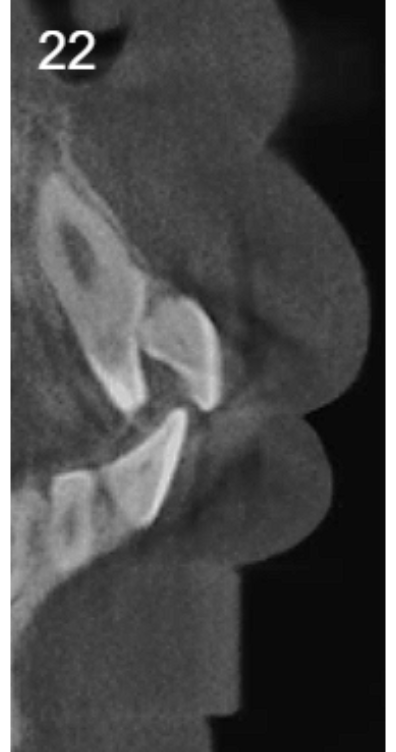

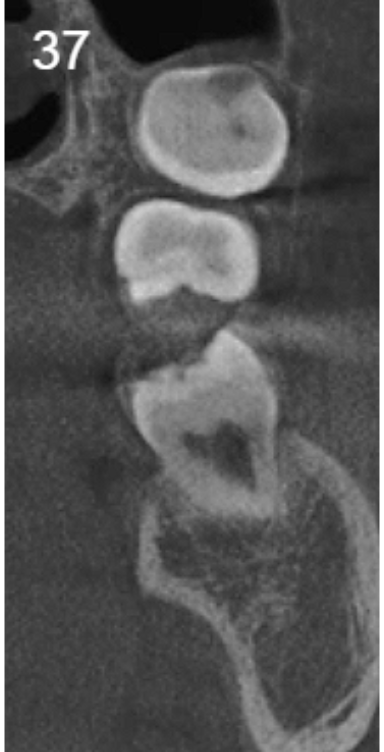

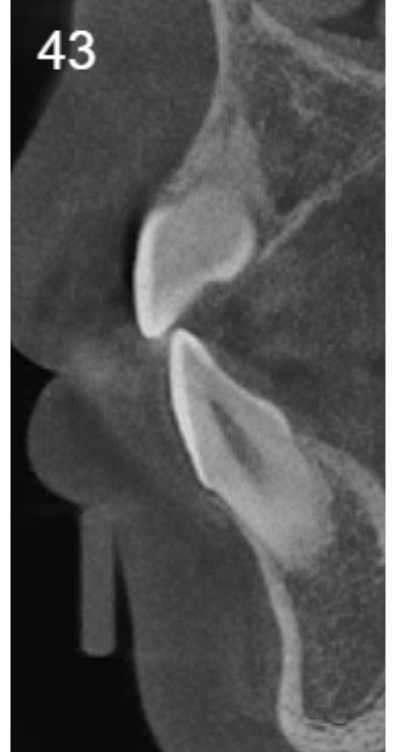

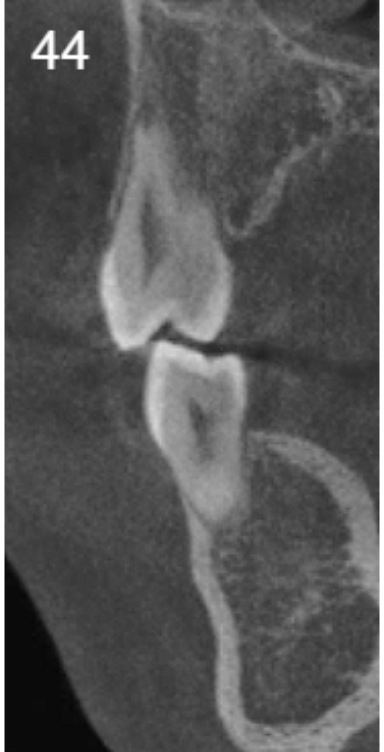

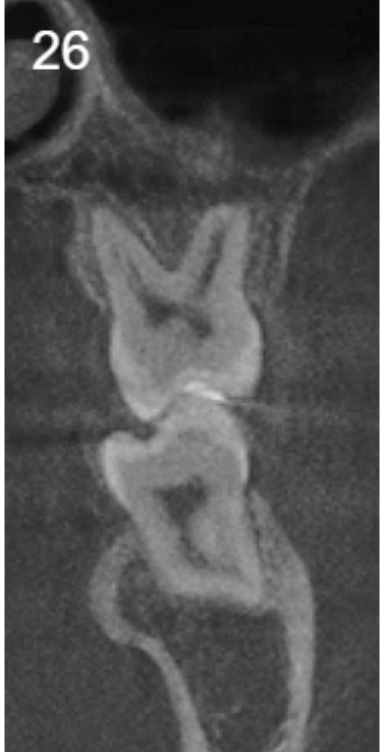

MODEL & CBCT ANALYSIS

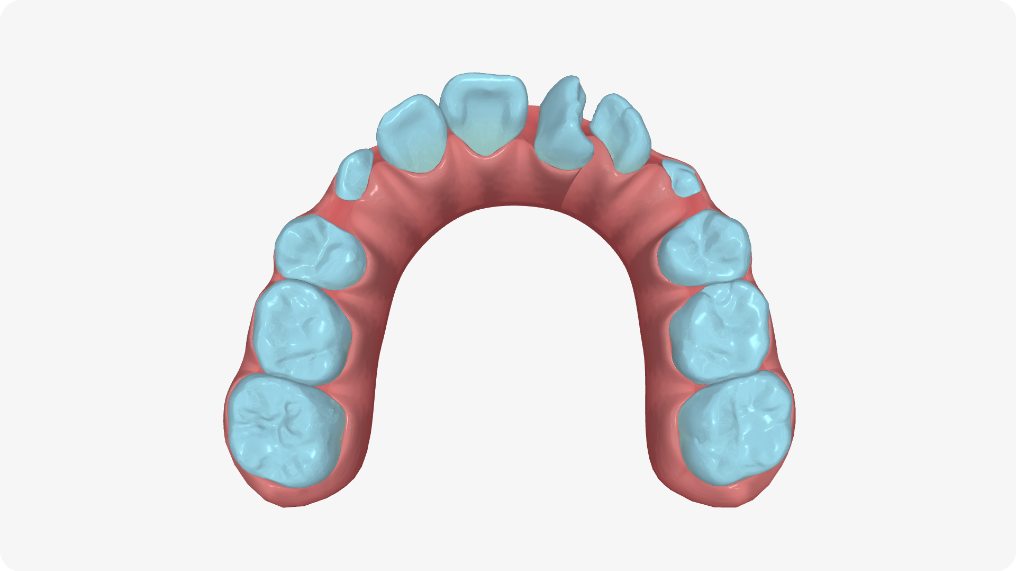

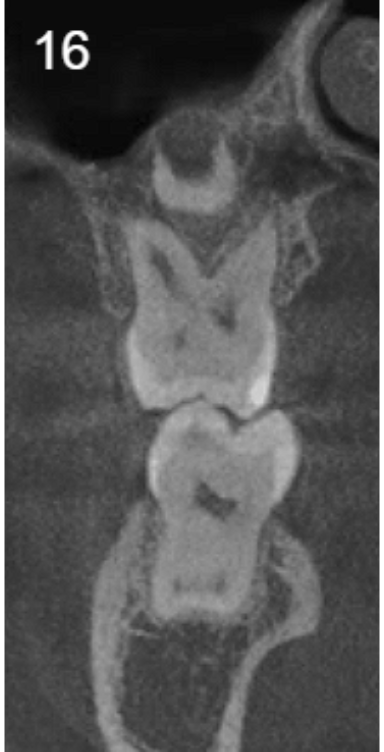

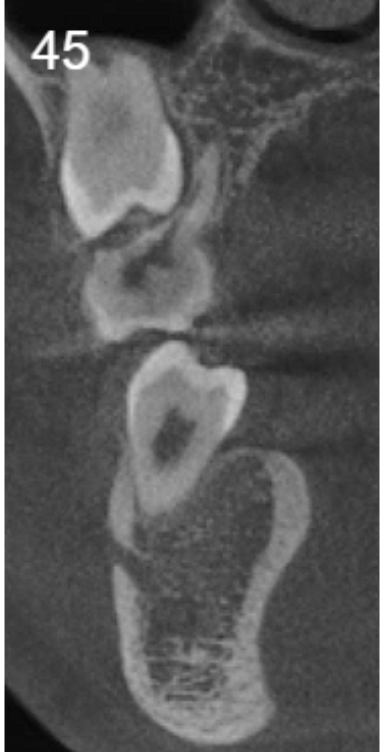

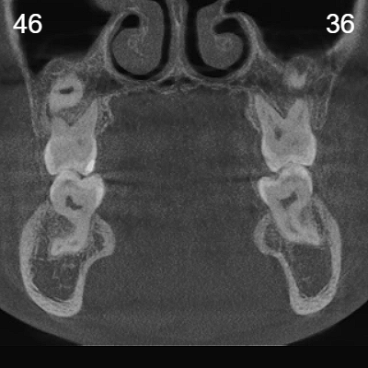

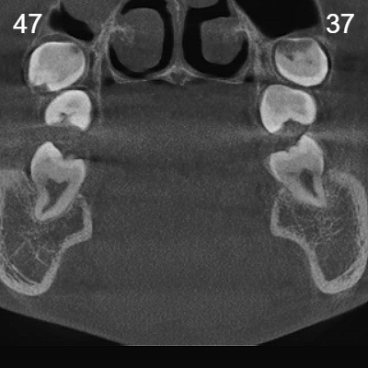

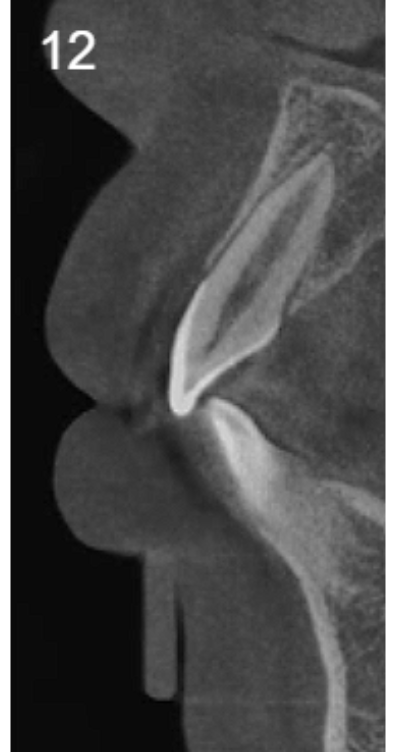

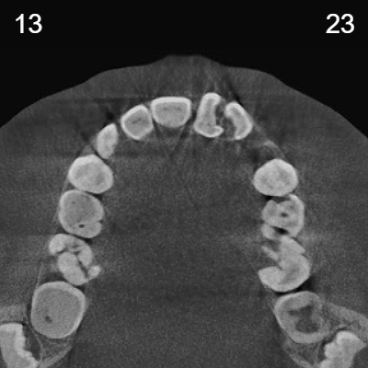

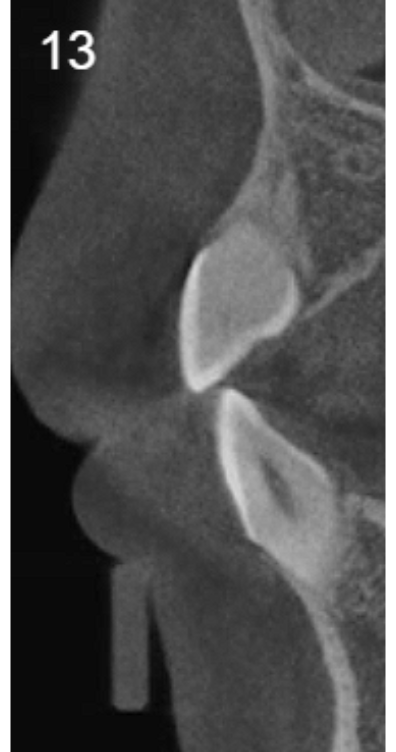

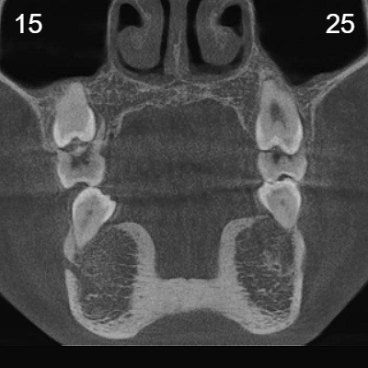

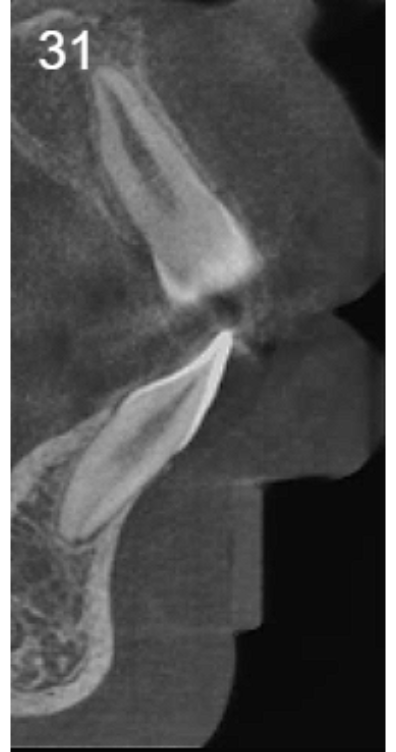

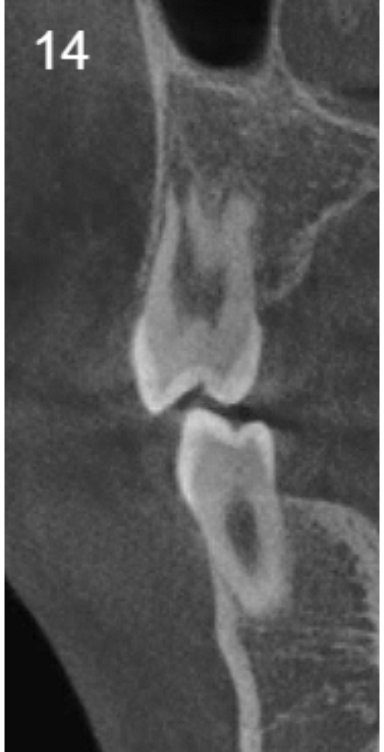

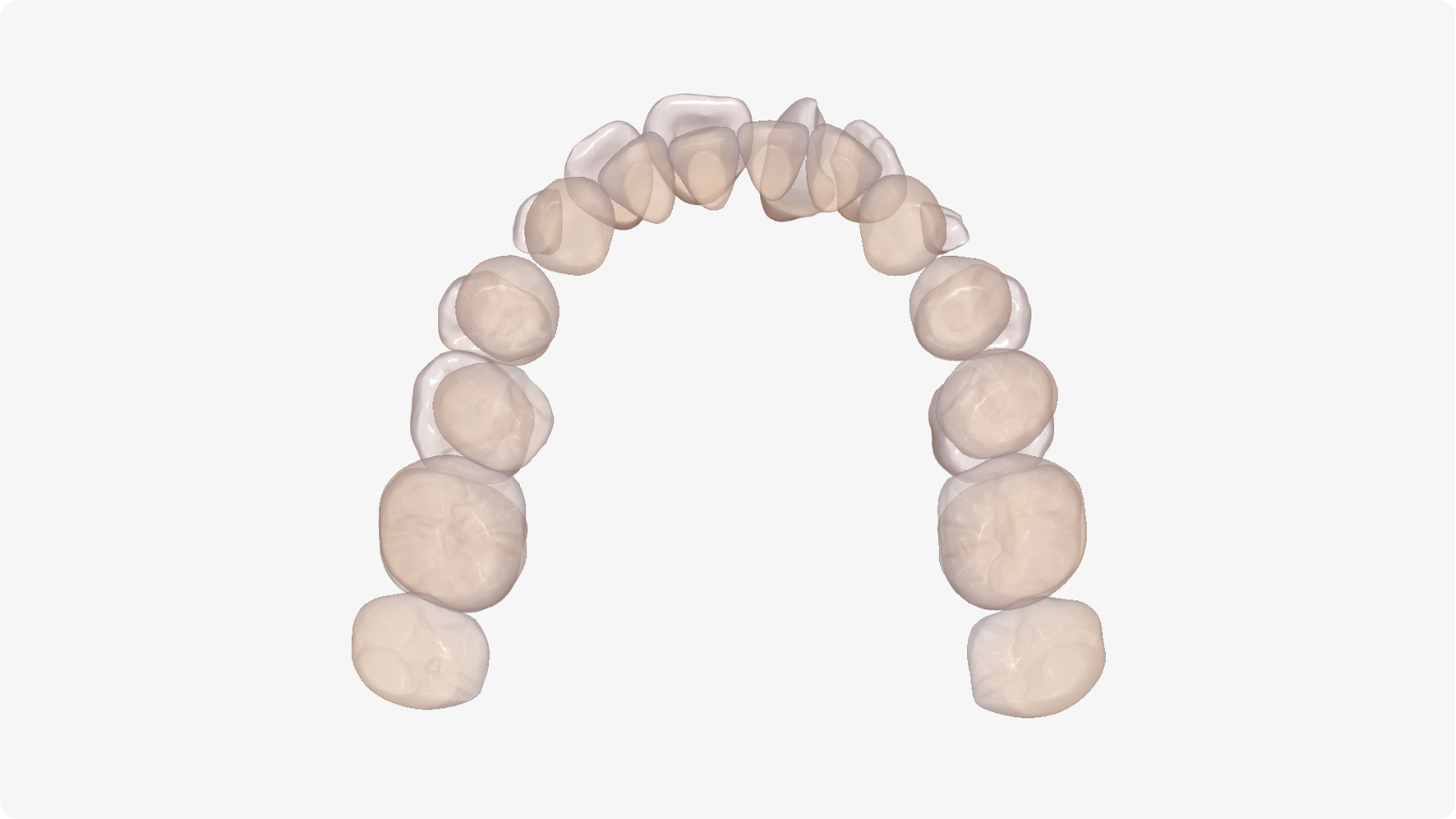

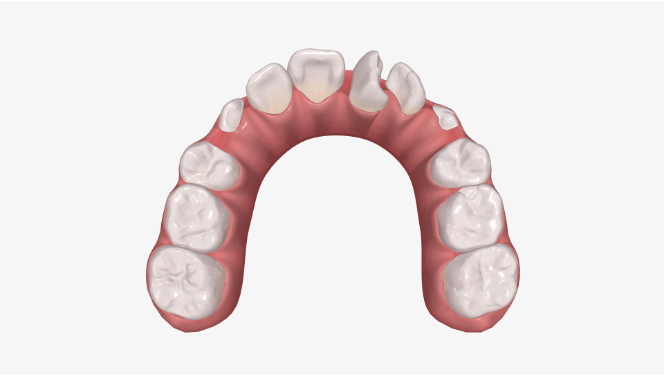

The 3D record defines arch form, occlusion and anatomy.

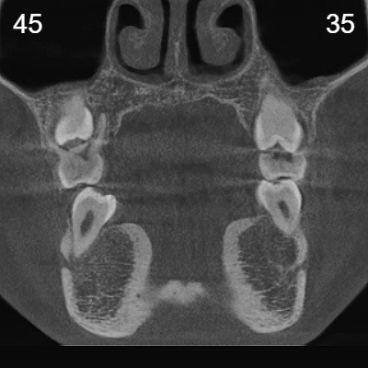

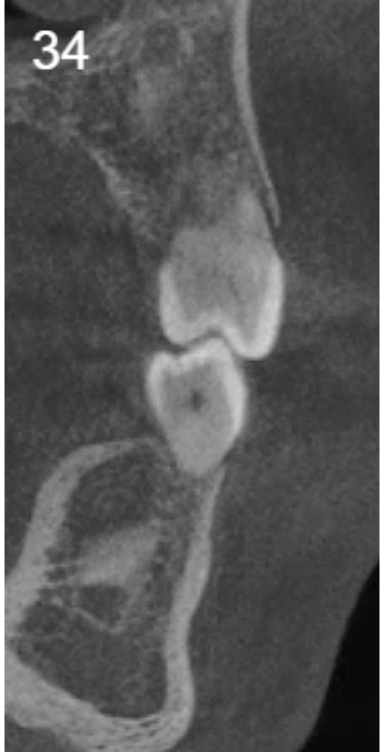

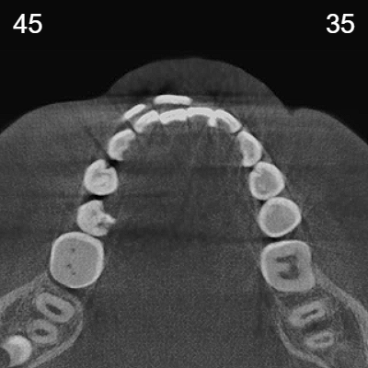

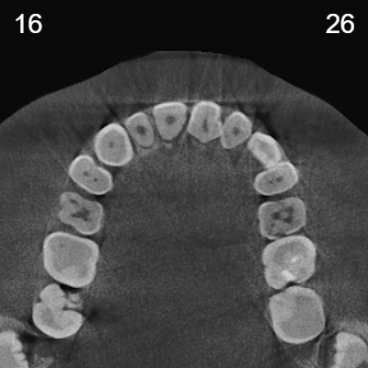

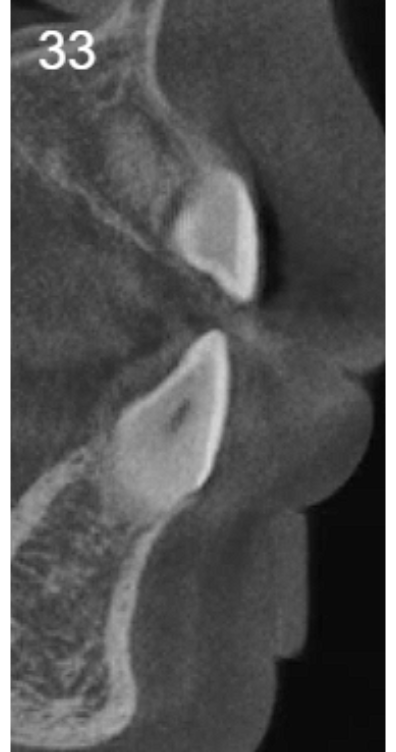

Curve of SpeeLeft: 4.0 mmRight: 3.9 mm

Molar relationshipLeft: Angle Class IIRight: Angle Class II

Spacing / crowdingMaxillary: 2.25 mm spacingMandibular: 0.68 mm, normal

Arch widthMaxillary: normalMandibular: 4–4 excessively wide

SymmetryMaxillary: normalMandibular: normal

Arch-width coordinationD1 canine: 36.5 : 29.4, coordinatedD2 middle: 40.4 : 40.2 · D3 molar: 49.5 : 49.3, coordinated
